Gantry Roller Assembly
Item #: H7002
| Qty | Unit price |
|---|---|
| Each | |
| 1 | $678.17 |
Expected Ship Date:
4/30/2024
*Expected Ship Date is estimated
This product is sold as a kit. To customize for your needs please call 1-800-248-7717

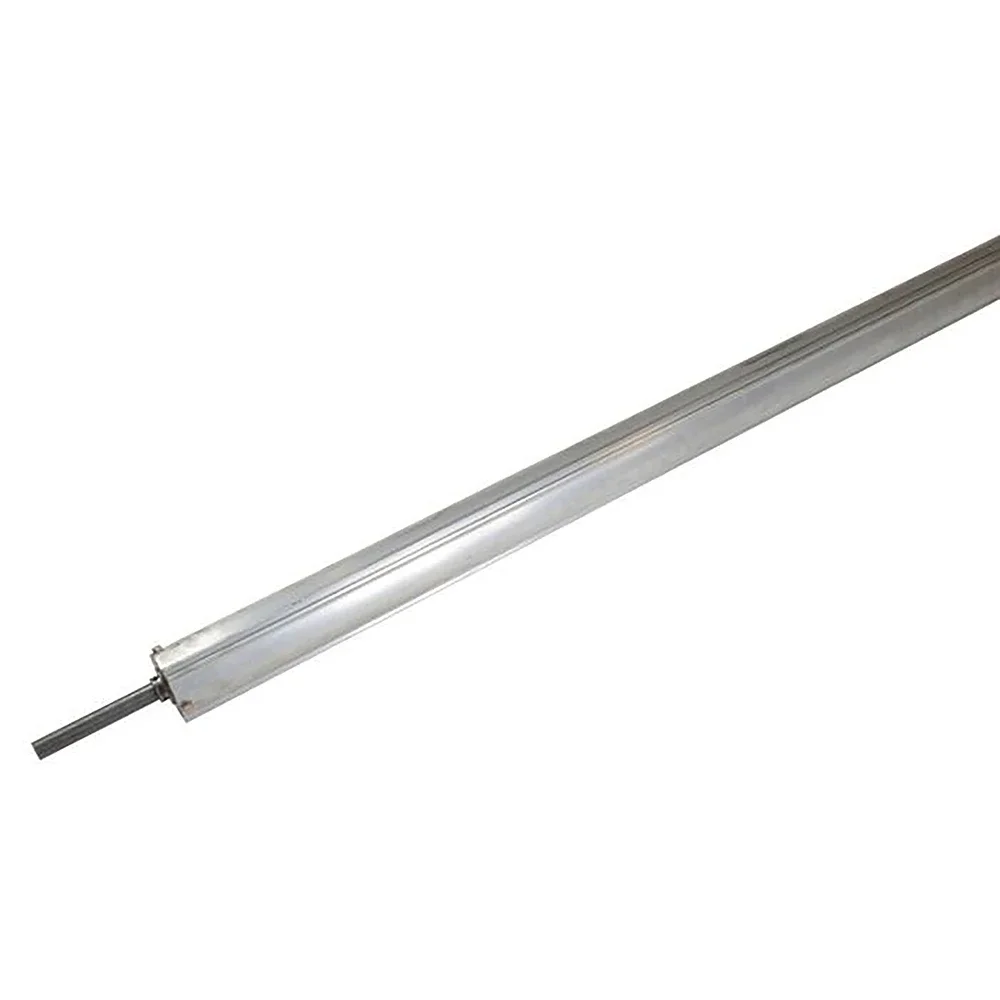

Designed for use with the Rack n’ Pinion system by Pioneer, the OEM #H7002 roller assembly is an essential part of the “Strong Arm” tarping system. This spring-loaded roller assembly creates a fluid rolling action and can be mounted to pivot arms on both stationary and adjustable gantry roll rests. Built using high-strength steel, you can be confident this roller assembly will go the distance and support your tarp system with smooth operation day in and day out.

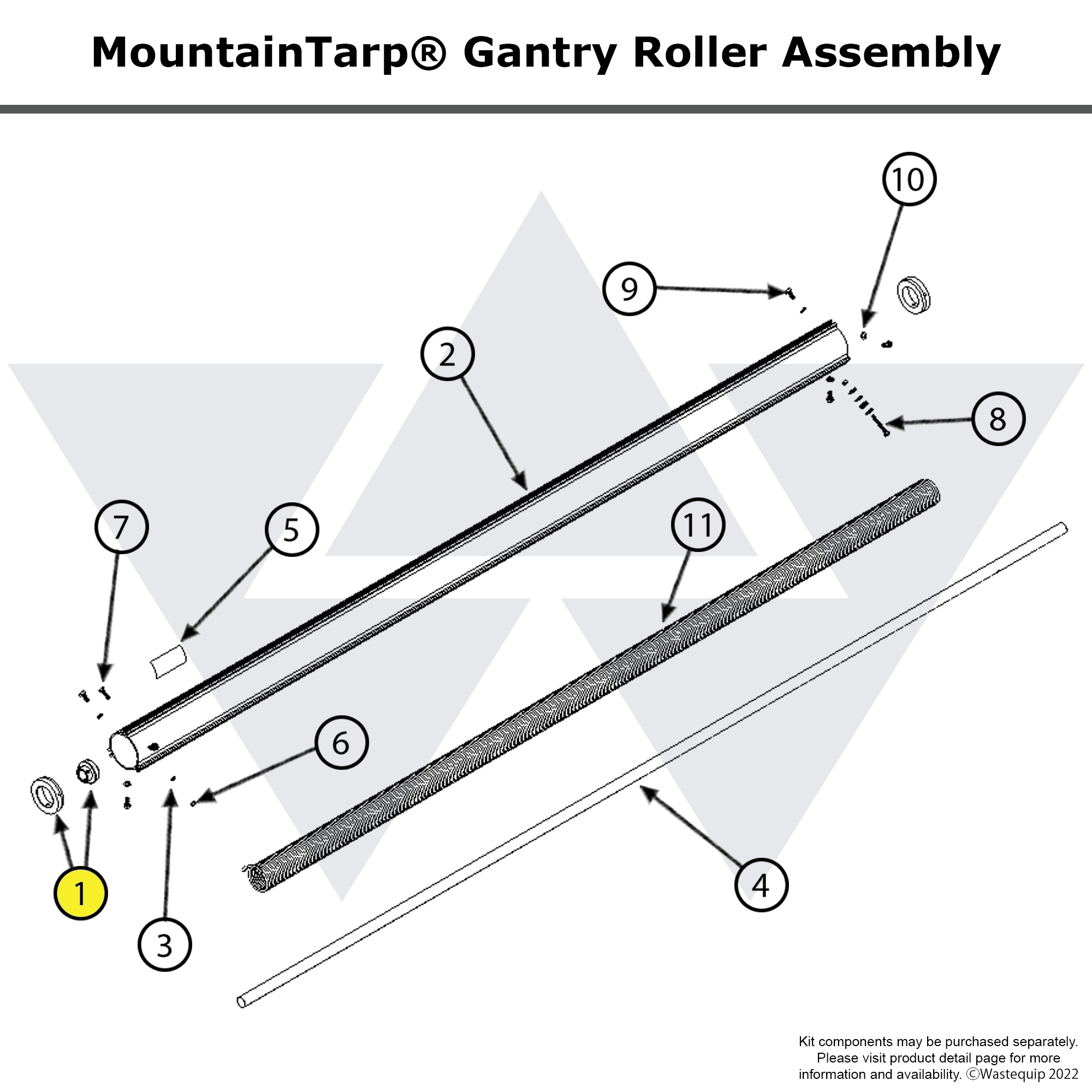

H7002 Parts Include:
14201HHCS: 1/4-20 x 1in HHCS Gr. 8 (Qty: 1)
14202HHCS5: 1/4-20 X 2in HHCS Gr. 5 (Qty: 1)
14STOVERLCKN: 1/4-20 Stoverlock Nut (Qty: 2)
H7003-1: Roller, Outer Tube, Alum 88" (Qty: 1)
H7004: Roll, Shaft (Short) (Qty: 1)
H7005A-1: Spacer, w/Bearing - R&P Roller (Qty: 2)
H7008: Roll, Spring (.192 wire) (Qty: 1)
K0113: 5/16 x3/4 hex bolt gr. 8 (Qty: 6)
K0365B: 5/16 Lock Washer (Qty: 6)
PLD: DECAL - Pre Load - H7002 Rolle (Qty: 1)
ROT0116: 1/4 Lock Washer (Qty: 2)
14201HHCS: 1/4-20 x 1in HHCS Gr. 8 (Qty: 1)
14202HHCS5: 1/4-20 X 2in HHCS Gr. 5 (Qty: 1)
14STOVERLCKN: 1/4-20 Stoverlock Nut (Qty: 2)
H7003-1: Roller, Outer Tube, Alum 88" (Qty: 1)
H7004: Roll, Shaft (Short) (Qty: 1)
H7005A-1: Spacer, w/Bearing - R&P Roller (Qty: 2)
H7008: Roll, Spring (.192 wire) (Qty: 1)
K0113: 5/16 x3/4 hex bolt gr. 8 (Qty: 6)
K0365B: 5/16 Lock Washer (Qty: 6)
PLD: DECAL - Pre Load - H7002 Rolle (Qty: 1)
ROT0116: 1/4 Lock Washer (Qty: 2)
