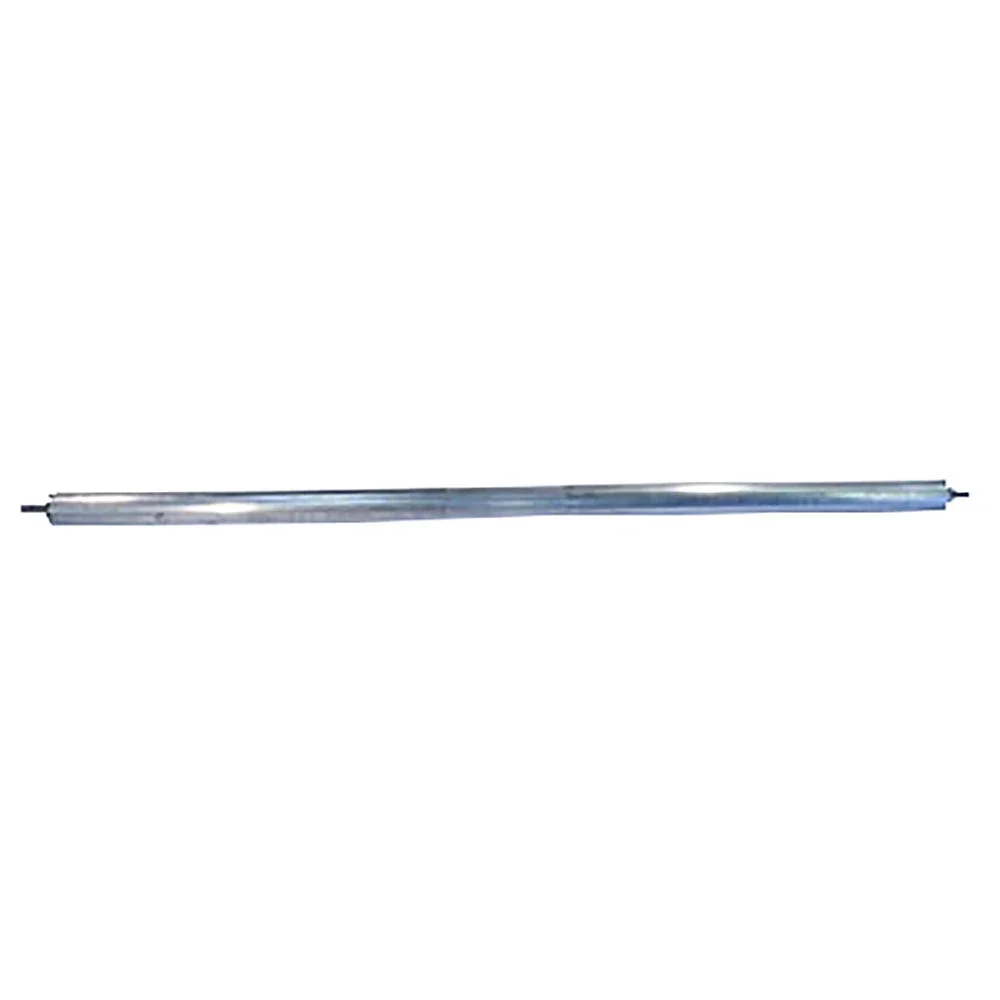

Complete Spring Loaded Roller Assembly

Designed for use with the HR1000 series/Mountain Tarp systems, this complete spring-loaded roller assembly by Pioneer provides a smooth rolling action when covering and uncovering a trailer bed or dump truck. The shaft is 99” and can be cut down if needed. The starting width of the driver-side telescoping spring roller is 93-1/2” and can be adjusted as needed. This is the complete assembly, so installation and removal are quick and easy. G605 Parts Include:
102412PHPTCS: 10-24 x 1/2 Pan Head Phillips (Qty: 4)
1420625CPSS: 1/4-20 x 5/8 Cup Point Set Scr (Qty: 2)
51618175HHCS5: 5/16-18 x 1 3/4" Hex Head Cap (Qty: 1)
812PPHSMS: #8 x 1/2in Philips Pan HSMS (Qty: 2)
A2203: LOCK RING for G609 Spring (Qty: 1)
G606: Roll, Tube Outer (Qty: 2)
G607: Roll, Center Section (Qty: 1)
G608: Shaft - 99" w/1 Hole (Qty: 1)
G609: Roller, Spring (.162 wire) (Qty: 1)
G610X: OBSOLETE (Qty: 2)
G611: Cone w/S.S. Holes (Qty: 1)
G613X: OBSOLETE (Qty: 1)
G614X: OBSOLETE (Qty: 1)
RMDDA: DECAL - Rllmstr Drivers (Qty: 1)
