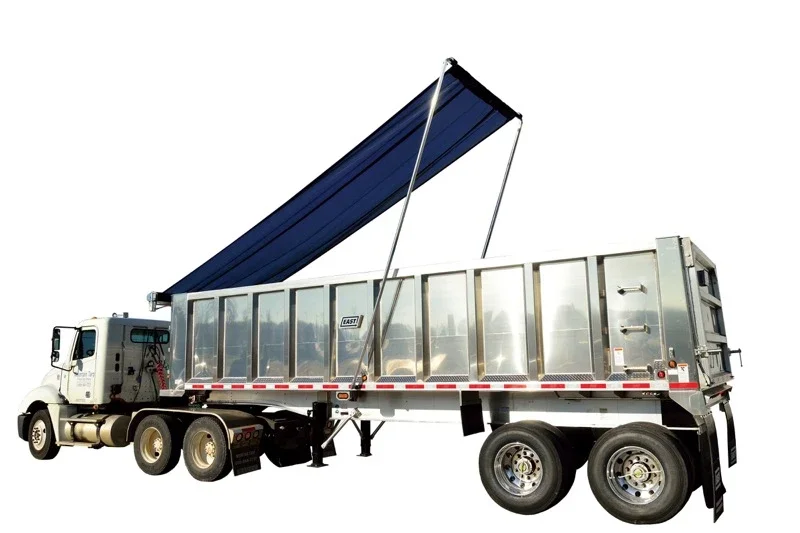

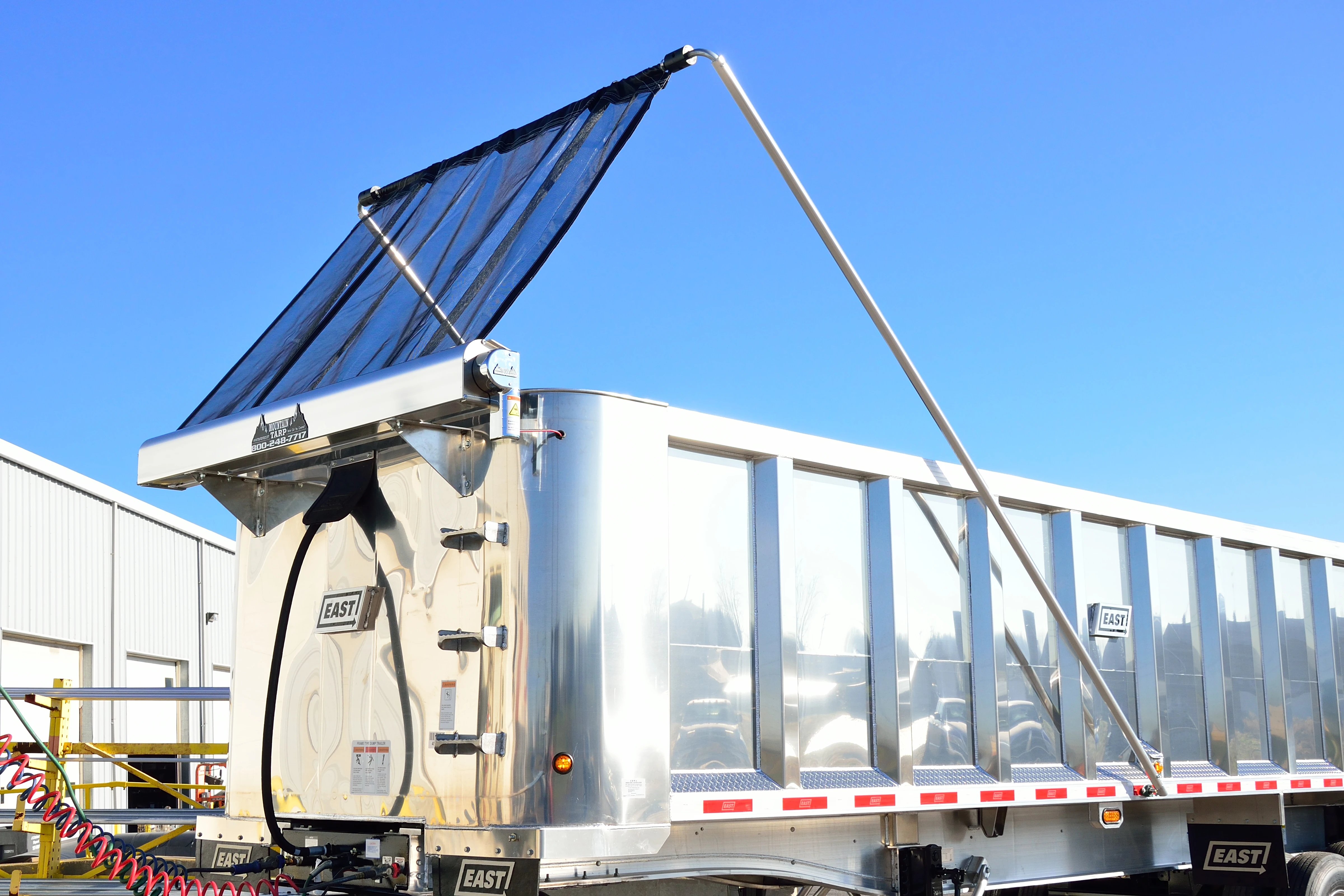

96" Manual Flip Tarp 29-39' Trailer Kit

Item #: K620TM

Qty	Unit price
Each
1	$3,842.00

Expected Ship Date: 4/8/2026

*Expected Ship Date is estimated

This product is sold as a kit. To customize for your needs please call 1-800-248-7717

Flip tarp systems are extremely versatile. They can be mounted on truck bodies up to 48’ in length and are available in manual or fully automatic systems. Variety of motor, tarp, and mounting options. Optional 18 oz. tarp or hot top material available.
K620TM Parts Include:
K0101: Head Roller Box 96" (Manual) (Qty: 1)
K0120: Head Roller Brace-Lt or Rt (Qty: 2)
K0125: Arm Sleeve & Chain Assembly (Qty: 2)
K0201: Chain Guard 7'/ Tread (Qty: 1)
K0212: 3/8 x 3/4 Hex Head Bolt Gr. 5 (Qty: 5)
K0220: Chain Sprckt 16' w/Master Link (Qty: 1)
K0330: Crank Handle Flip Tarp (Qty: 1)
K0340: Gear Box Tread Plate (Qty: 1)
K0353: 3/8" Flat Washer (Qty: 5)
K0414E: Arm 20' Extrusion No Connect (Qty: 2)
K0420: Crossover 96" Bent (Qty: 1)
K0517: Underbody Assembly with Arm Plug (Driver Side) '3900' Genesis (Qty: 1)
K0518: Underbody Assembly with Arm Plug (Passenger Side) '3900' Genesis (Qty: 1)
K0514A: Gearbox &Chngrd Bolts Bag (Qty: 1)
K0514B: Arm Bolts Bag (Qty: 1)
K0514D: Doughnut & Clamp Bag (Qty: 1)
K0514G: Roller Box & Brace Bolt Bag (Qty: 1)

Guaranteed unbreakable tarp arm
Custom order tarp pivot arms to your specifications
Manual, ground-operated roller system or fully automatic drive option
3-year non-prorated warranty on electric motor
Spring assemblies available in side mount 4 or 5 spring or torsion spring with 3,300 lbs. hold down pressure
Versatile use wind deflector
Tarp Saver Bar option locks tarp down on high cab shield mounts to prevent billowing, flapping and loss of contents
Rocker switch with solenoid is standard; rotary switch or remote control available
