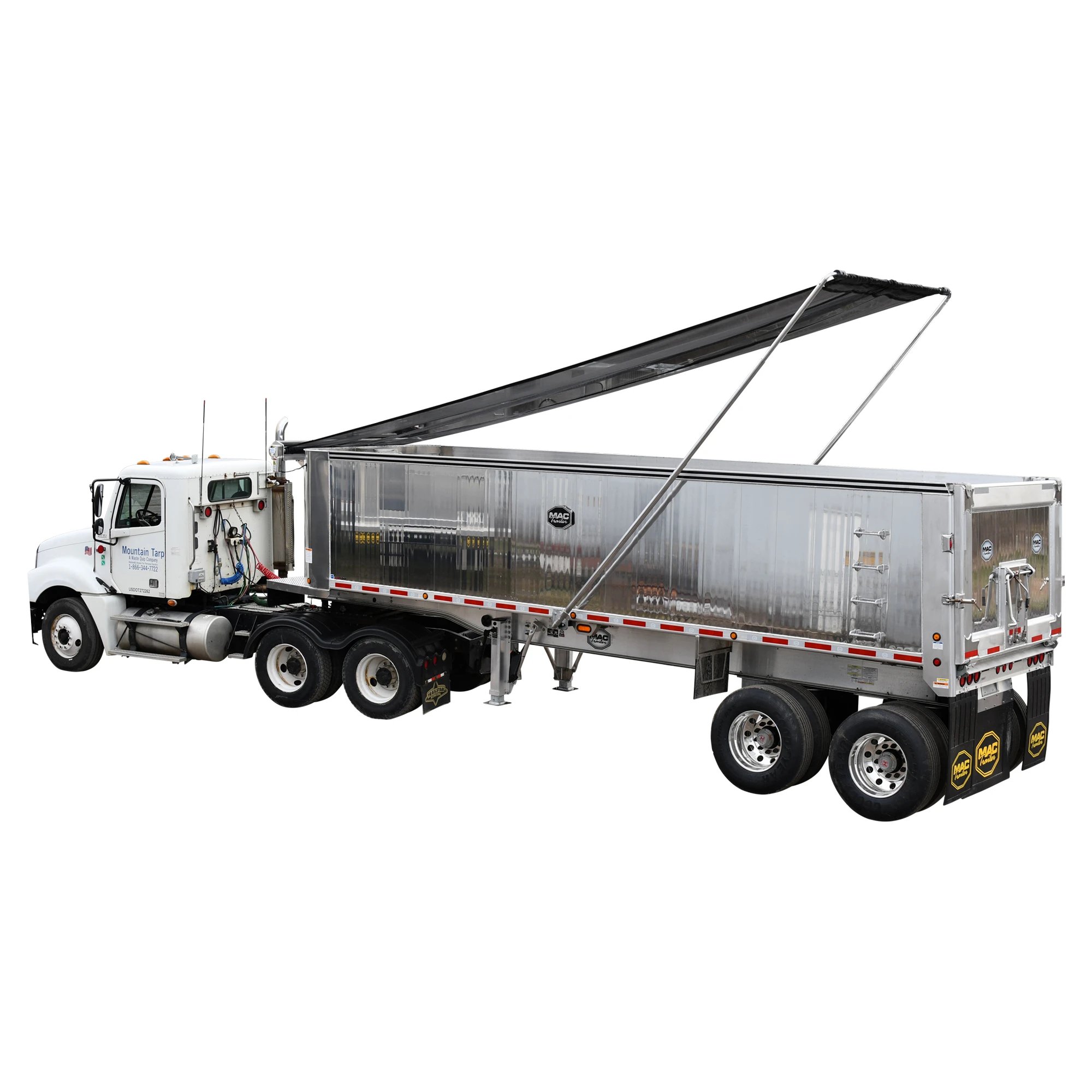

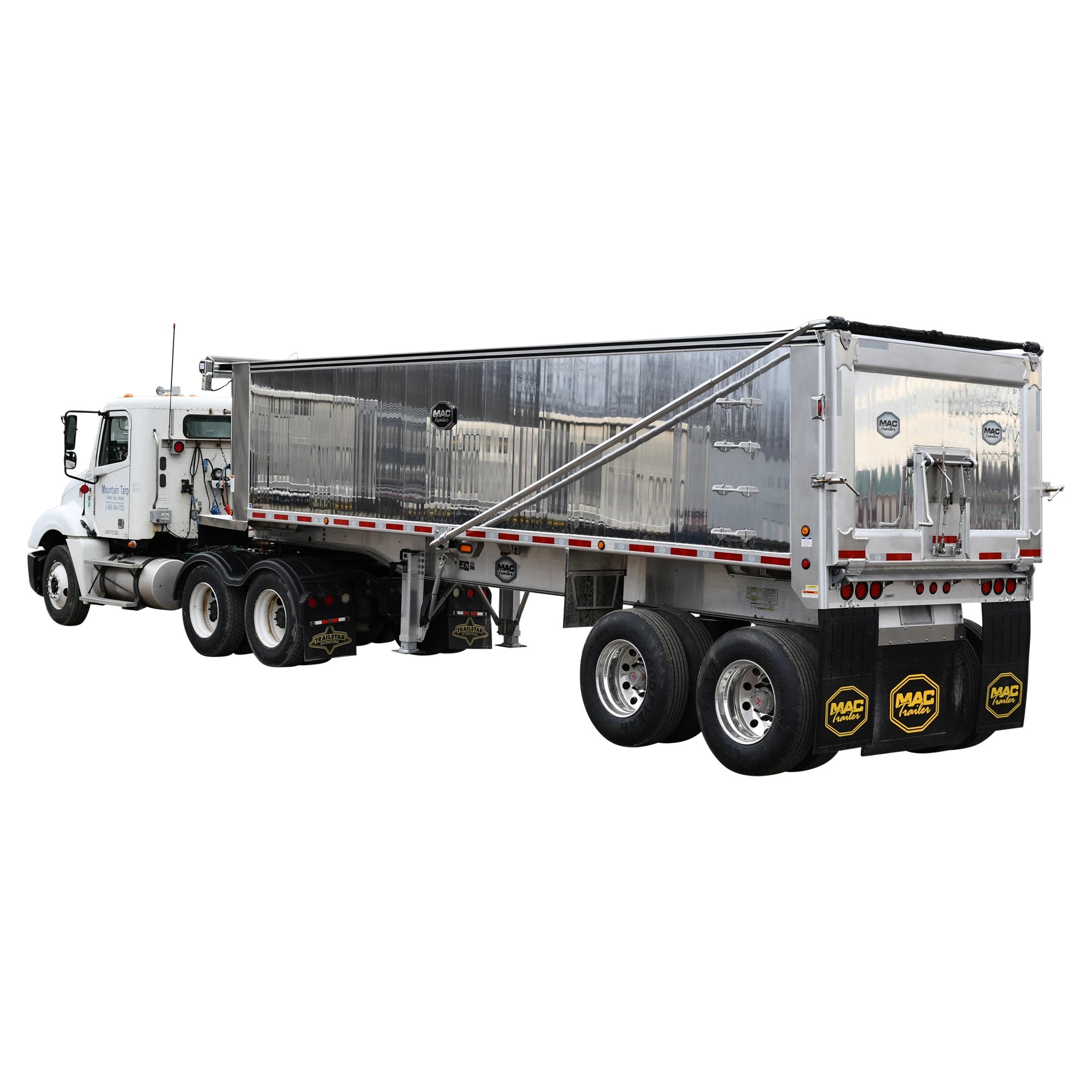

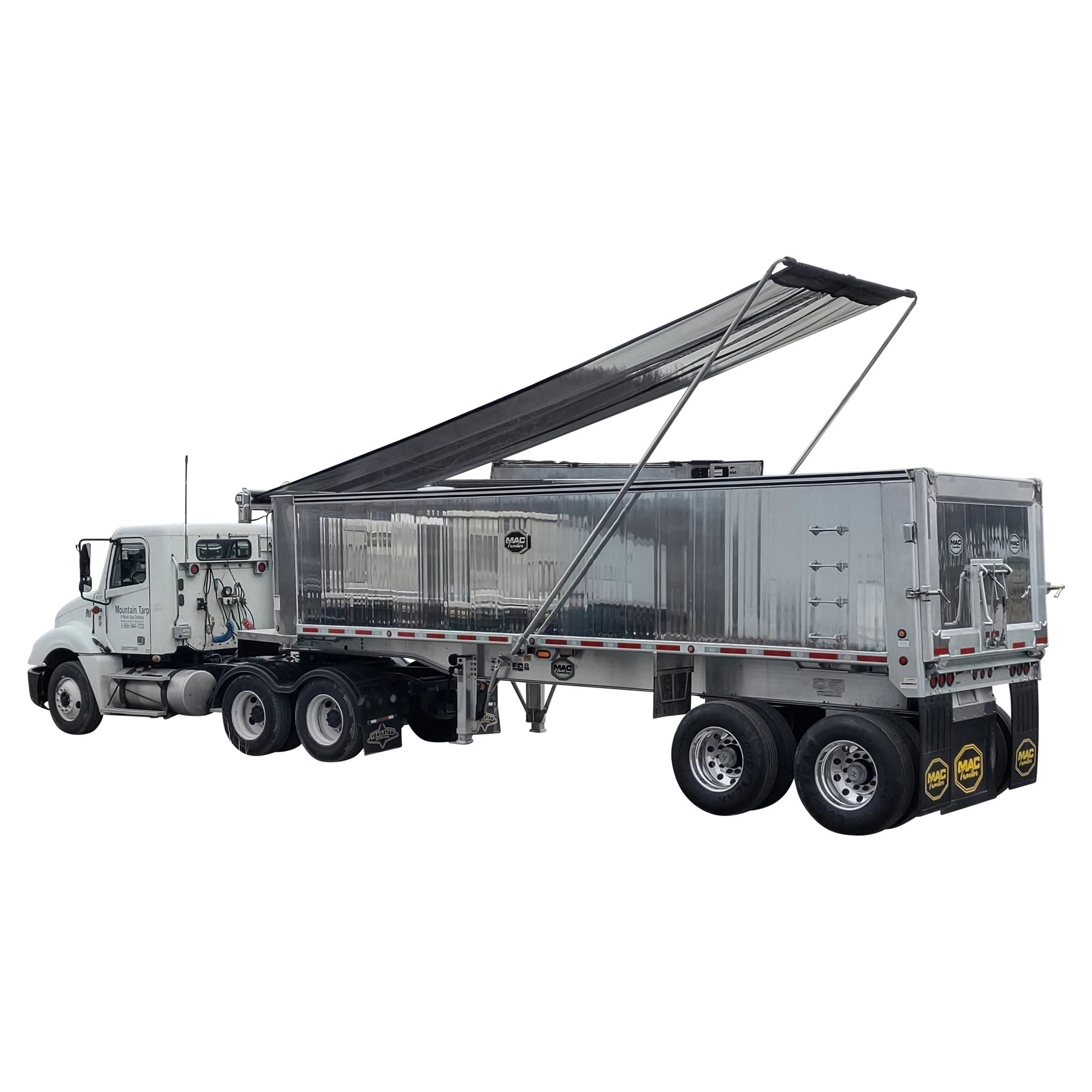

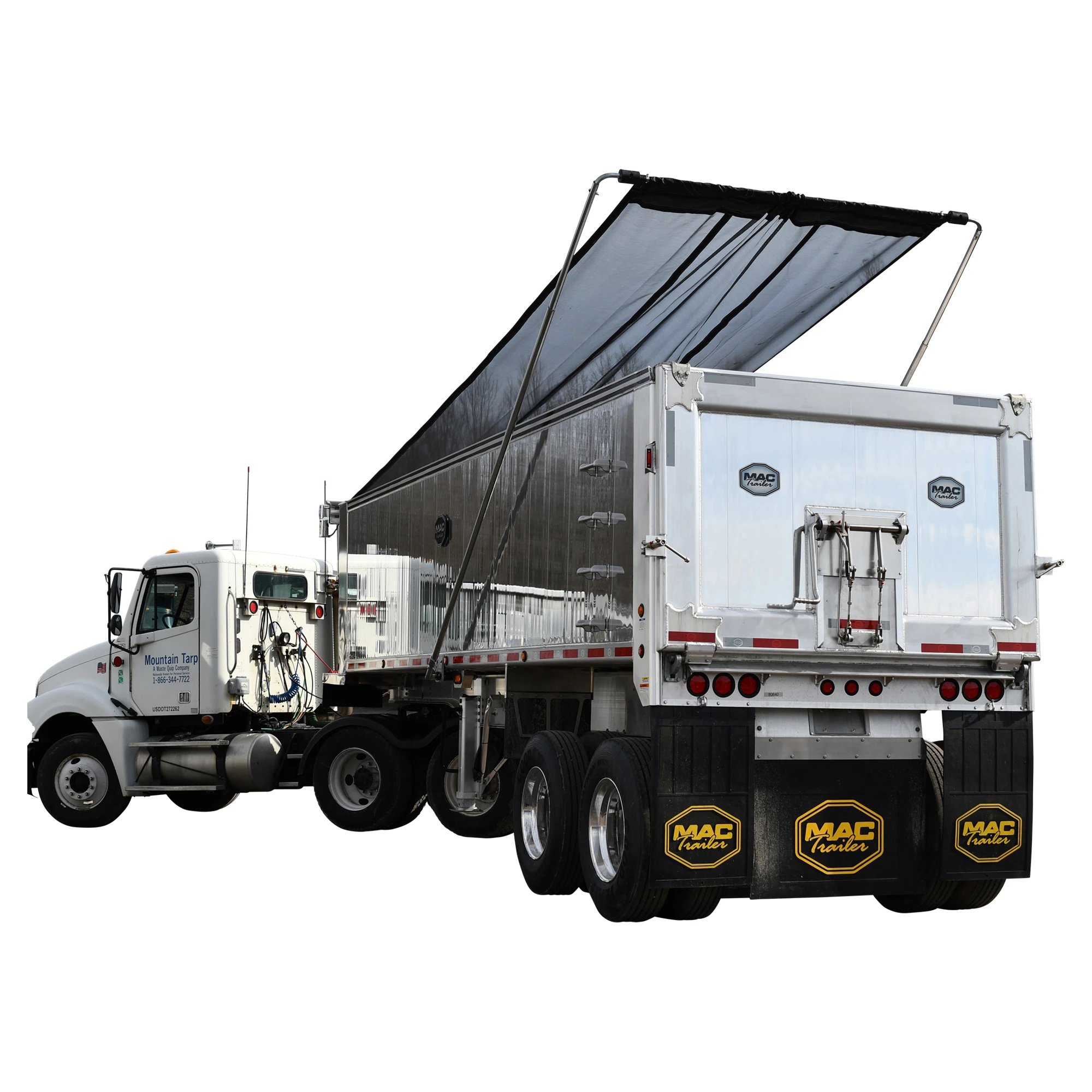

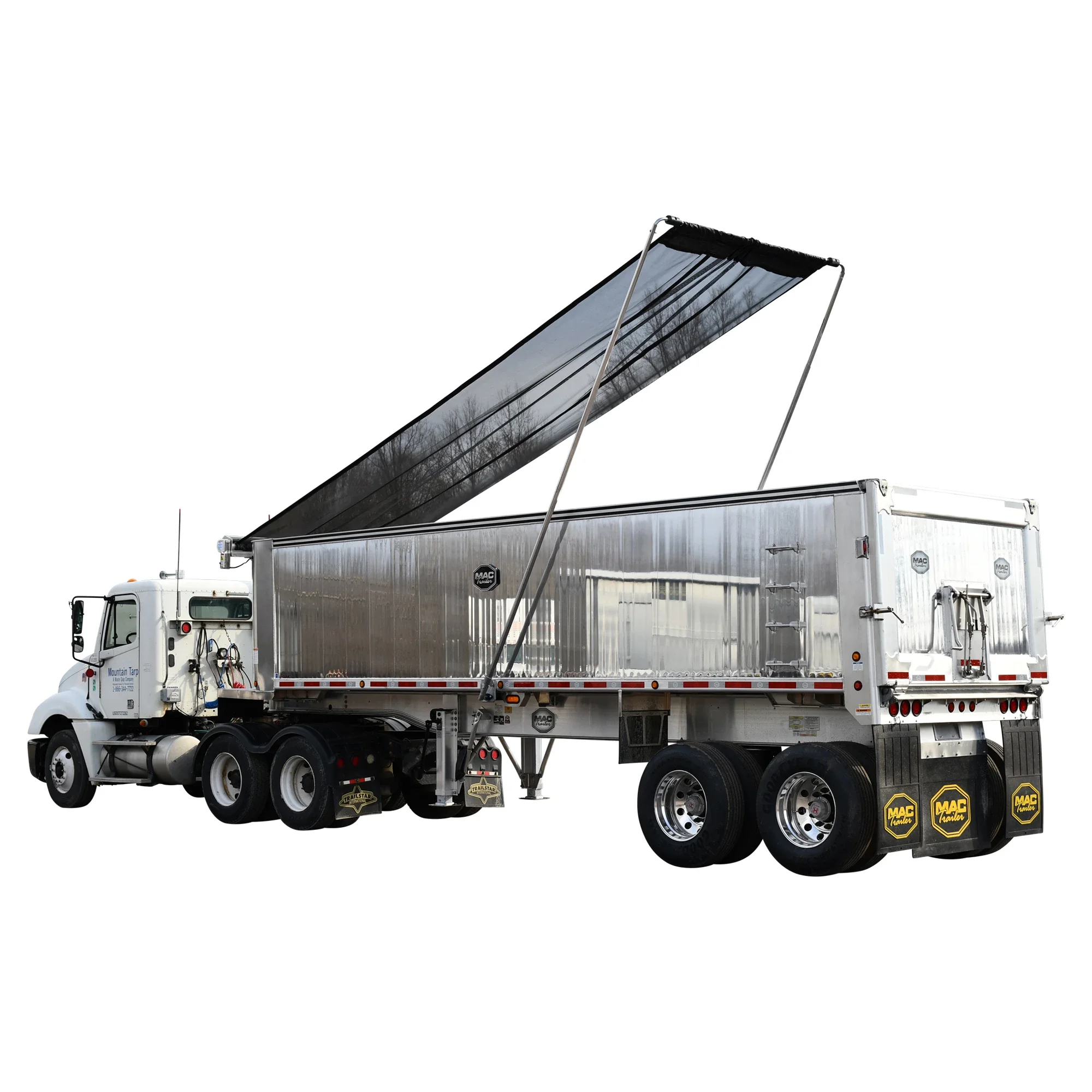

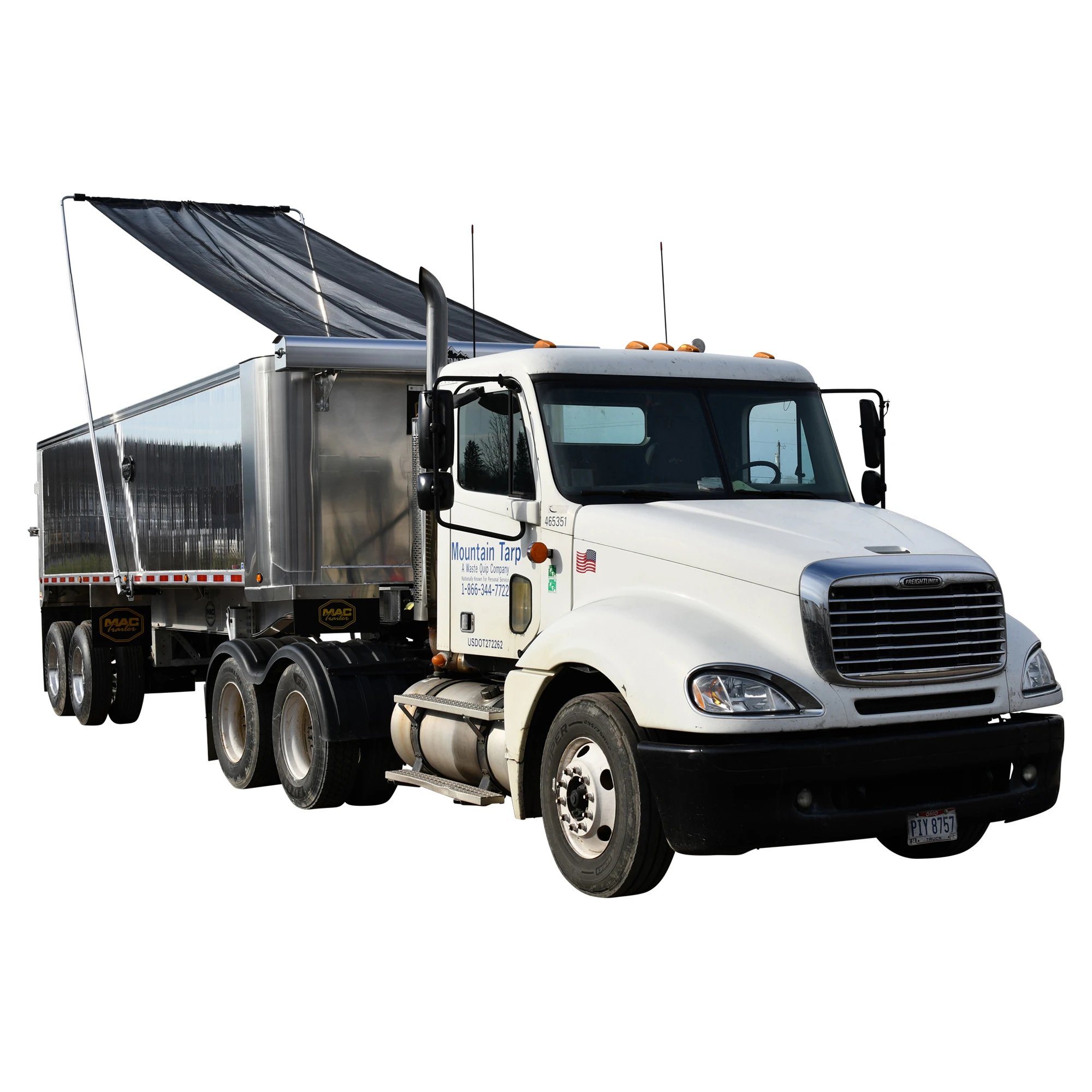

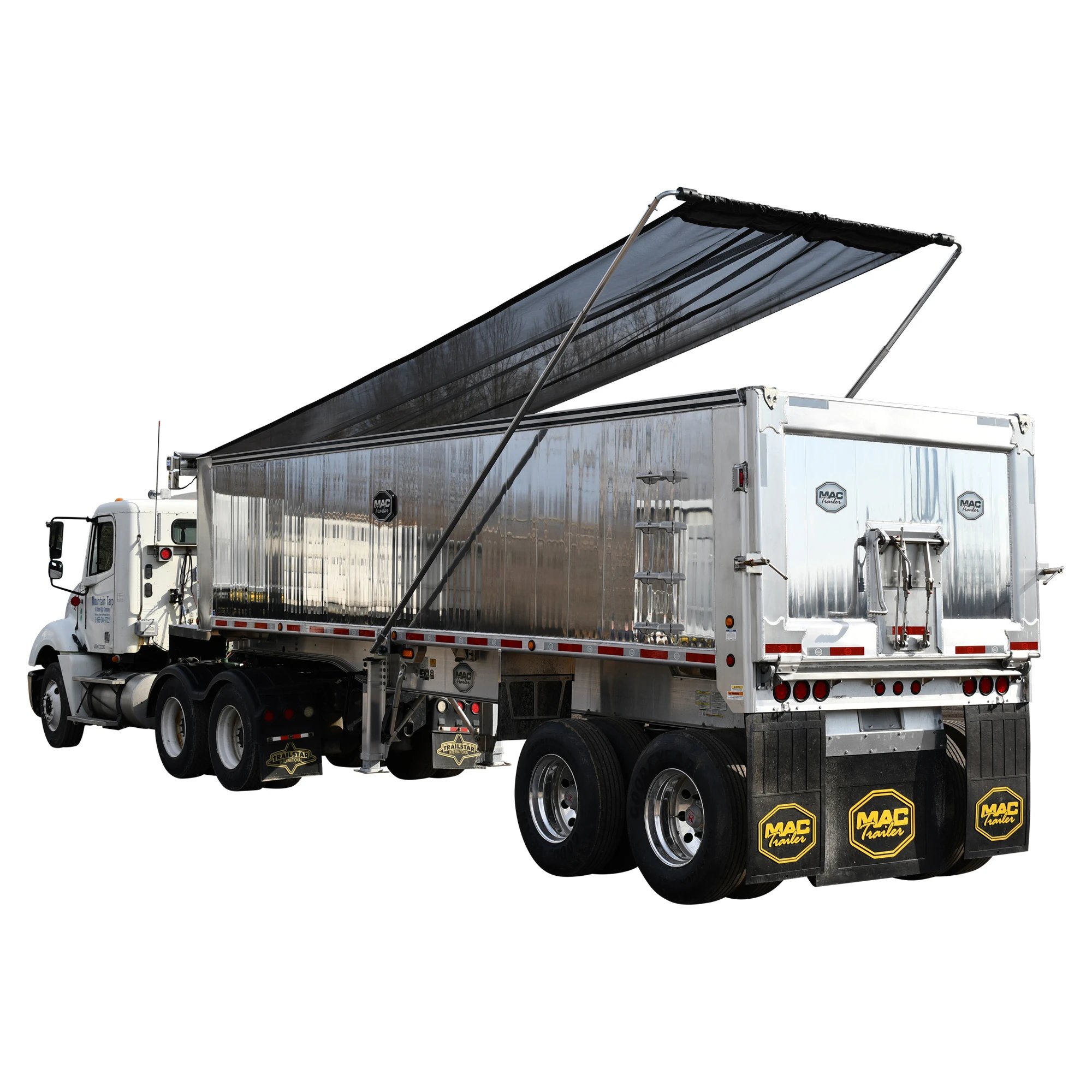

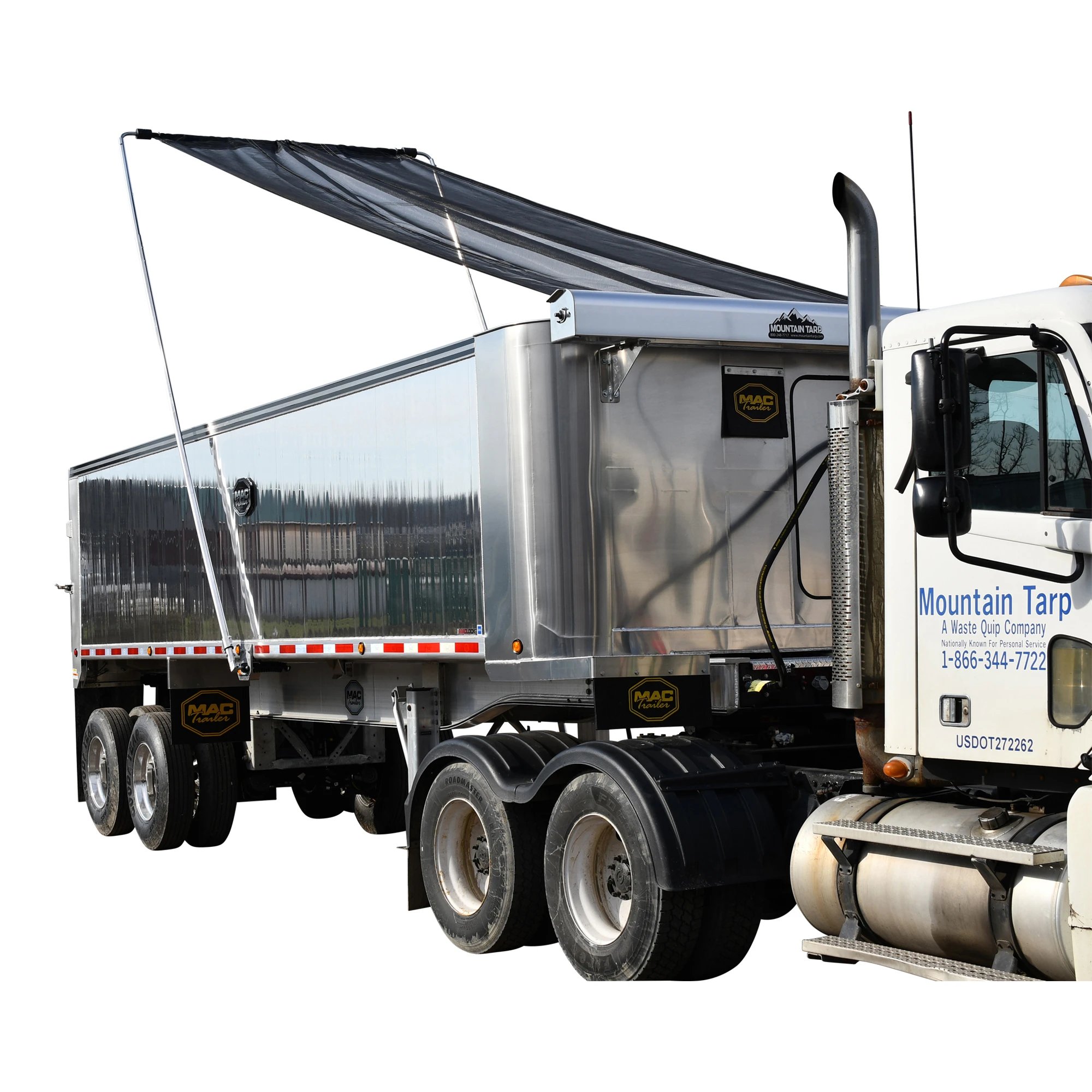

102" Electric Telescoping Flip Tarp for Trailers with 3900lb Torsion Spring
Item #: K012TETR
| Qty | Unit price |
|---|---|
| Each | |
| 1 | $3,340.00 |
Expected Ship Date:
4/8/2026
*Expected Ship Date is estimated
This product is sold as a kit. To customize for your needs please call 1-800-248-7717
Trailer Flip Tarps provide a telescoping electric Flip Tarp system complete with new hex cast arm connector, underbody mount springs 102" head roller box with braces, arm sleeve & chain assembly, and two-piece telescoping heavy-duty tarp arms. Only guaranteed unbreakable tarp arm in the business! Fits up to a thirty-six foot Trailer.
K012TETR Parts Include:
K0170TS: 90:1 Motor 1.88HP Ass'y (Qty: 1)
K0125: Arm Sleeve & Chain Assembly (Qty: 2)
K0208S: Hex Chrome UB wo/AP (DS)(3900) (Qty: 1)
K0207S: Hex Chrome UB wo/AP (PS)(3900) (Qty: 1)
G1650: Bow, L.S. Dlx Alum (Qty: 1)
G1650B: Bow, 8/19 R.S. ALUM. (Qty: 1)
K0857: UPPER F/T ARM, TELE, 12FT (Qty: 2)
K0858: LOWER F/T ARM, TELE, 12FT, DRILLED/TAPPED (Qty: 2)
K0102ES: 102" Smooth Electric Head Roller Box (Qty: 1)
G1649: Rear Section/Cross Tube - Alum (Qty: 1)
K0514B: Arm Bolts Bag (Qty: 1)
K0514E: Drop Plate / Pivot Bolt Bag (Qty: 1)
K0416T: Hex Arm Connector, Cast, Tele (Qty: 2)
15-10-0054: 3/8 x 1/2 Inch Set Screw (Qty: 1)
K0521FS: Comp. Bag Framed Trlr. w/RS (Qty: 1)
K0160: BRACE FOR ROLLER BOX - FLANGED (Qty: 2)
K0514G: Roller Box & Brace Bolt Bag (Qty: 1)
G1616: Donut for Alum Rear Section (Qty: 2)
K012TETR Parts Include:
K0170TS: 90:1 Motor 1.88HP Ass'y (Qty: 1)
K0125: Arm Sleeve & Chain Assembly (Qty: 2)
K0208S: Hex Chrome UB wo/AP (DS)(3900) (Qty: 1)
K0207S: Hex Chrome UB wo/AP (PS)(3900) (Qty: 1)
G1650: Bow, L.S. Dlx Alum (Qty: 1)
G1650B: Bow, 8/19 R.S. ALUM. (Qty: 1)
K0857: UPPER F/T ARM, TELE, 12FT (Qty: 2)
K0858: LOWER F/T ARM, TELE, 12FT, DRILLED/TAPPED (Qty: 2)
K0102ES: 102" Smooth Electric Head Roller Box (Qty: 1)
G1649: Rear Section/Cross Tube - Alum (Qty: 1)
K0514B: Arm Bolts Bag (Qty: 1)
K0514E: Drop Plate / Pivot Bolt Bag (Qty: 1)
K0416T: Hex Arm Connector, Cast, Tele (Qty: 2)
15-10-0054: 3/8 x 1/2 Inch Set Screw (Qty: 1)
K0521FS: Comp. Bag Framed Trlr. w/RS (Qty: 1)
K0160: BRACE FOR ROLLER BOX - FLANGED (Qty: 2)
K0514G: Roller Box & Brace Bolt Bag (Qty: 1)
G1616: Donut for Alum Rear Section (Qty: 2)
- Adjustable high grade aluminum arm system adjusts to cover trailers up to 36 feet in length
- Guaranteed unbreakable tarp arm
- 3,900lb torsion spring for great hold down pressure
- Reinforced casted arm connector with improved bracing
- Spring shaft can be easily removed from the arm connector for maintenance
- Arm profile features a V-groove for easy drill centering alignment
- 3-year non-prorated warranty on electric motor

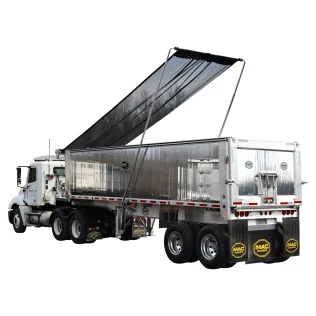

96" Electric Telescoping Flip Tarp for Trailers with 3900lb Torsion Spring
Your Price:
$3,236.00
/
each
EA
Listed Price:
$3,236.00
/
each
EA

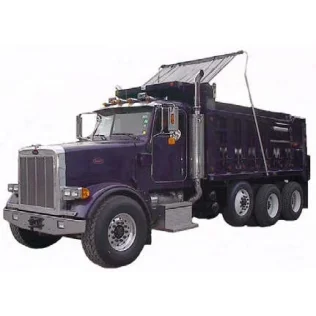

Electric Flip Tarp Telescoping Clock Spring
