HR1000 with Power Pack

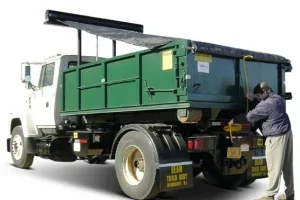

Pioneer’s HR1000 system provides an easy-to-use, economical solution for quick, secure covering of loads. The HR1000 is a semi-automatic, armless tarping system with a hydraulic gantry. To operate, the driver simply raises the gantry, flips the rope above the container, walks to the rear of the truck and pulls the tarp over the load. He then secures the rope to the tie-down cleat and lowers the gantry.
HR1000W/PP Parts Include:
1275HHSMS: #12 x 3/4in HHSMS (Qty: 5)
14114FW: 1/4 x 1 1/4" Fender Washer (Qty: 5)
1420325HHCS5: 1/4-20 x 3-1/4 HHCS GR5 (Qty: 1)
14STOVERLCKN: 1/4-20 Stoverlock Nut (Qty: 1)
1AWGWC: #1 AWG Welding Cable (Qty: 16)
381650HHCS5: 3/8-16 x 5 HHCS GR5 (Qty: 4)
381675HHCS5: 3/8-16 x 3/4in HHCS Gr. 5 (Qty: 4)
A2205-1: Winding Wheel for G605 Rollers (Qty: 1)
G2005: Roll Mtg Angle, 6in (Qty: 2)
G503: Washer for Side Rail Guides (4 (Qty: 2)
G504: Rear Section, Collar 1 1/16in (Qty: 5)
G601: Housing, Assy Only - Steel (Qty: 1)
G605: Roller, Assy COMP (Qty: 1)
G616: PVC Roller for E600 Unit 6" (Qty: 2)
G619: Pull Rope 29ft, w/Snap Hook (Qty: 1)
G625: Eye Bolts 5/16-18 x 2-1/4 (Qty: 1)
G627: Rr Section (1pc) 102 x 3/4 IMC (Qty: 1)
H7032: Clevis Eye Pad (Qty: 1)
H7048: 3/8 NPTM x -6 JICM 90 Deg. Ell (Qty: 2)
H7059: Cylinders, 40in - TR (Qty: 1)
H7062: Clevis Pin w/ Cotter (Qty: 2)
HR1000PPBOOKS: HR 1000 PP Instructions (Qty: 1)
HR1119: MOUNTING BRACKET ZEE, HR1100 (Qty: 2)
HR2081: Pump Mount, Gantry (Qty: 1)
HR2084: Clamp, Gantry Pump Mount (Qty: 2)
HR2088: Double Acting Power Unit, 2Gal (Qty: 1)
HR2090: Pendant Mount, 2 Button (Qty: 1)
HR4505: Roll, Base Only (Qty: 1)
HR4511-40: Gantry Assy, COMP w/Legs & Eye (Qty: 1)
HR4562A: Hydraulic Hose, -4 x 9ft L -06 (Qty: 1)
HR4563: Hydraulic Hose, -4 x 6ft L -06 (Qty: 1)
HR4681: -6 SAE x-6 JIC 90 Deg. ELL (Qty: 2)
HRG2016: COVER, 19ft Mesh (HR 1000) (Qty: 1)
K0353: 3/8" Flat Washer (Qty: 2)
K0355: 3/8" Nut (Qty: 12)
K0378: 1/2" Nut (Qty: 4)
K0383: 3/8" x 1" Hex Head Bolt (Qty: 6)
R0103R: Round J-Hook - Steel (Qty: 4)
R0150: 1/4 x 1 tek (Qty: 4)
R0163: 3/8 Lock Washer (Qty: 14)
ROT0129: Circut Brkr. ROT 150 Amp (Qty: 1)
RPCRATE: Wooden Crate for R & P Kits (Qty: 1)
RTG7656: Ring Terminal, 5/16 x 1 Ga. (Qty: 4)
SPHR1000: SERIAL PLATES - HR1000 (Qty: 1)
WSDTT: DECAL - Windscreen - inTuff-Ta (Qty: 1)
Z4009L: 1/2 Lock Washer (Qty: 4)
